1-1/4inch 1-1/2inch 2inch Sch80 Pipe Fitting CPVC Blind Flange

  • Model NO.: 8021150100
  • Type: Welding Flange
  • Structure: Flanges
  • Manufacturing Way: Press
  • Transport Package: Carton
  • Origin: Changzhou
  • Standard: ANSI, DIN, GB, JIS, GOST, BSW
  • Material: Plastic
  • Connection: Socket
  • Trademark: Huasheng
  • Specification: 1/2 inch to 12 inch
  • HS Code: 3917400000
Jiangsu Huasheng Plastic Co.ltd  is founded in 1988 ,which specialized in  moulding, Precision injection, UPVC,CPVC pipe, fittings and Valves in DIN, ISO, ASTM standards on water supply and industry with ,CE,ISO,SGS etc certificates





Product Details



SCH80 PVC Blind Flange,PVC/C,SCH 80 ASTM F439 CPVC fittings drawing
dn(*") size(mm)
D0 d1 da H n
1/2" 89.00  60.30  16.00  14.50  4
3/4" 89.00  69.85  16.00  15.30  4
1" 108.00  79.38  16.00  16.30  4
1-1/4" 117.00  88.90  16.00  15.80  4
1-1/2" 127.00  98.43  16.00  18.50  4
2" 152.00  120.65  19.00  20.50  4
2-1/2" 178.00  139.70  19.00  21.30  4
3" 191.00  152.40  19.00  22.00  4
4" 229.00  190.50  19.00  23.20  8
5" 254.00  216.00  22.00  25.00  8
6" 284.00  241.30  22.00  28.30  8
8" 343.00  298.45  22.00  28.70  8
10" 410.00  362.00  24.00  40.00  12
12" 482.60  432.00  24.00  42.00  12


Our Services

- Any inquiries will be replied within 24 hours

- Professional manufacturer

- OEM is available

- High quality, standard designs, reasonable&competitive price, fast lead time

- Faster delivery: Sample will be prepared in 2-3days

- Shipping: We have strong cooperation with DHL, TNT, UPS, MSK, China Shipping, etc

- You can also choose your own shipping forwarder



Hebei Jimeng Highstrength Flange-tubes Group Co.,Ltd. is a large manufacturer engaged in producing all kinds of Forged Steel Flange with high quality and competitive price.

1.Standard

ASME B16.5,ASME B 16.47,DIN EN 1092-1,DIN 1759-1,MSS SP-44,API605,GB/T9112 GB/T13402 HG/T20592 HG/T20615 ,GB/T 10746,GB/T10747

2.Material

A105,Q235B,10#,20#,16Mn,45#,Q345B,304,304L316,316L

3.Type

Slip-On, Welding Neck, Blind, Socket Welding

4.Size

OD:1/2''--80''

5.Pressure Class

CL: Class 150, 300, 600, 900, 1500 and2500.

PN:PN 6, PN 10 , PN 16, PN 25, PN 40 and PN 64.

6.Surface Treatment

RF,FF,G,RJ,FF

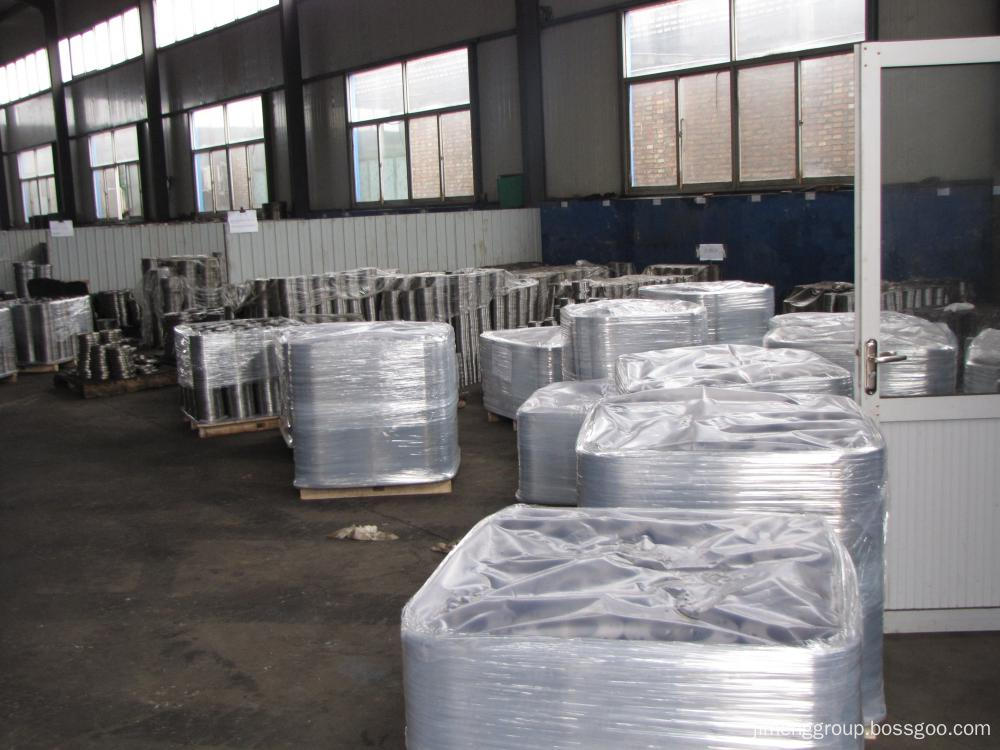

7.Packing

wooden cases,wooden pallet,container or as your request

8.Delivery Time

within 20 days

9. Usage

chemical industry, electric power,oil pipe system,building,water transmission and so on.

10.MOQ

2MT

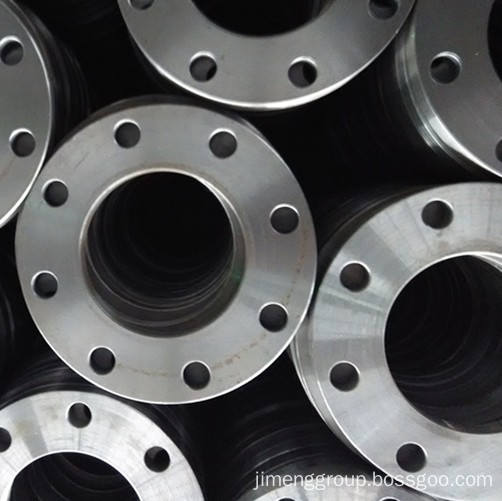

Forged Steel Flange

Forged Steel Flange, Forged Steel Fittings, Stainless Steel Forged Flange
