Downhole Cementing Slip on Canvas Steel Finger Casing Cement Basket

Model NO.: Cementing Basket
Size Range: 4′′′--20′′
Classification: Canvas and Metal
Min. Bow Qty: 10
Use: Oil Well Cementing
Trademark: Zhongshi
Transport Package: Plywood Case
Specification: API, ISO
Origin: Henan, China
HS Code: 8431
Model NO.: Cementing Basket
Size Range: 4′′′--20′′
Classification: Canvas and Metal
Min. Bow Qty: 10
Use: Oil Well Cementing
Trademark: Zhongshi
Transport Package: Plywood Case
Specification: API, ISO
Origin: Henan, China
HS Code: 8431
API downhole cementing slip on canvas steel finger casing cement basket

1) Standard: API

2) API and ISO certified

3)  Specifications: 4''--20''. More special sizes or combination are available as requested.

4) Photos

Downhole Cementing Slip on Canvas Steel Finger Casing Cement Basket
Downhole Cementing Slip on Canvas Steel Finger Casing Cement Basket


5) Application

Cement Basket is an effective aid in retaining and supporting the cement where weak formations and stage cementing is encountered.

6) Structure

It is designed with Flexible Bow Springs, heat-treated under controlled conditions for maximum strength and uniformity, are welded to slip-on collars and overlapping metal fins for flexibility and strength to support long columns of cement during primary cementing operations.

7) Parameter


Casing Size 		No. of Bows  Total Length  Basket O.D.  Min. Hole Size
In in mm in
4 1/2 10 24 1/2 12 1/2 317.5 6
5 10 24 1/2 13 342.9 6
5 1/2 12 24 1/2 13 1/2 342.9 7 1/4
6 5/8 12 24 1/2 14 5/8 371.5 8 3/8
7 14 24 1/2 15 381 8 3/8
7 5/8 14 24 1/2 15 5/8 396.9 9 1/2
8 5/8 16 24 1/2 16 5/8 422.3 10 5/8
9 5/8 18 24 1/2 17 5/8 447.7 11 5/8
10 3/4 18 24 1/2 18 3/4 476.3 12 3/4
11 3/4 20 24 1/2 19 3/4 501.7 13 3/4
11 3/8 24 24 1/2 21 3/8 542.9 15 1/2
16 28 24 1/2 24 609.6 18
18 5/8 34 24 1/2 26 5/8 676.3 20 5/8
20 34 24 1/2 28 711.2 22

Package
Downhole Cementing Slip on Canvas Steel Finger Casing Cement Basket

Company Information

Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC.

We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001, etc..

Our  products mainly include:

1. Casing Centralizer                          2.  Float Collar & Float Shoe
3. Cementing Plug                              4.  Cementing Head
5.  Cement Basket                              6.  Tubing Pump / Rod Pump
7.  Valve Ball & seat                            8. Casing / Tubing Pipe and Coupling
9. Stage Collar                                    10. Pumping Unit
11. Air Blaster                                      12.  Sucker Rod

Our group have more than 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.  Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.

Contact us

PUYANG ZHONGSHI GROUP CO.,LTD

Add: 5th community, Zhongyuan Oilfield, Puyang, China

Tel: 0086-371-87096211 / 15838304721

Fax: 0086-371-87096212

Website: www.zs-oilfieldequip.com
                 www.chinajixie.com
                 www.casingcentralizer.com

Irene is here waiting for you!

Your sample order for quality test will be welcomed here! API downhole cementing slip on canvas steel finger casing cement basket

1) Standard: API

2) API and ISO certified

3)  Specifications: 4''--20''. More special sizes or combination are available as requested.

4) Photos

Downhole Cementing Slip on Canvas Steel Finger Casing Cement Basket
Downhole Cementing Slip on Canvas Steel Finger Casing Cement Basket


5) Application

Cement Basket is an effective aid in retaining and supporting the cement where weak formations and stage cementing is encountered.

6) Structure

It is designed with Flexible Bow Springs, heat-treated under controlled conditions for maximum strength and uniformity, are welded to slip-on collars and overlapping metal fins for flexibility and strength to support long columns of cement during primary cementing operations.

7) Parameter


Casing Size 		No. of Bows  Total Length  Basket O.D.  Min. Hole Size
In in mm in
4 1/2 10 24 1/2 12 1/2 317.5 6
5 10 24 1/2 13 342.9 6
5 1/2 12 24 1/2 13 1/2 342.9 7 1/4
6 5/8 12 24 1/2 14 5/8 371.5 8 3/8
7 14 24 1/2 15 381 8 3/8
7 5/8 14 24 1/2 15 5/8 396.9 9 1/2
8 5/8 16 24 1/2 16 5/8 422.3 10 5/8
9 5/8 18 24 1/2 17 5/8 447.7 11 5/8
10 3/4 18 24 1/2 18 3/4 476.3 12 3/4
11 3/4 20 24 1/2 19 3/4 501.7 13 3/4
11 3/8 24 24 1/2 21 3/8 542.9 15 1/2
16 28 24 1/2 24 609.6 18
18 5/8 34 24 1/2 26 5/8 676.3 20 5/8
20 34 24 1/2 28 711.2 22

Package
Downhole Cementing Slip on Canvas Steel Finger Casing Cement Basket

Company Information

Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC.

We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001, etc..

Our  products mainly include:

1. Casing Centralizer                          2.  Float Collar & Float Shoe
3. Cementing Plug                              4.  Cementing Head
5.  Cement Basket                              6.  Tubing Pump / Rod Pump
7.  Valve Ball & seat                            8. Casing / Tubing Pipe and Coupling
9. Stage Collar                                    10. Pumping Unit
11. Air Blaster                                      12.  Sucker Rod

Our group have more than 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.  Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.

Contact us

PUYANG ZHONGSHI GROUP CO.,LTD

Add: 5th community, Zhongyuan Oilfield, Puyang, China

Tel: 0086-371-87096211 / 15838304721

Fax: 0086-371-87096212

Website: www.zs-oilfieldequip.com
                 www.chinajixie.com
                 www.casingcentralizer.com

Irene is here waiting for you!

Your sample order for quality test will be welcomed here!

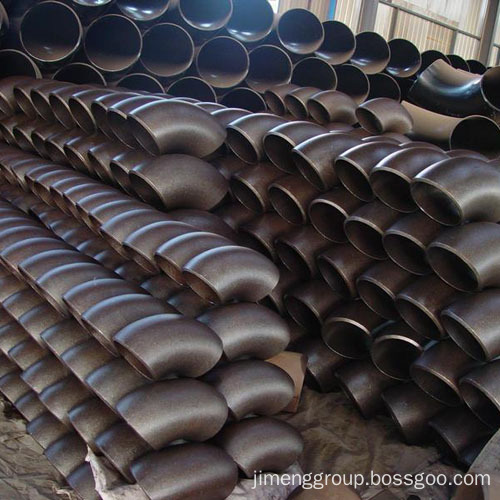

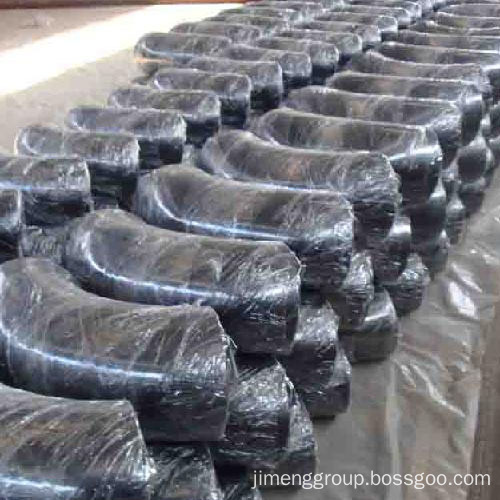

Stainless Steel 90°Short Radius Elbow


Specifications


1.Name: 45 degree,90 degree,180 degree

2.Long radius and short radius elbow

3.Bending angle:45d,90d,180d

4.Size :DN 15-DN2000(1/2-80) or according to your specific drawing

5.Material : Carbon steel, stainless steel and alloy steel

6.Standard :JIS, DIN, ANSI/ASTM,GB,BS

ASME/ANSI B 16.5,ASME/ANSI B 16.26-1994,JIS B 2311-1997,JIS B 2312

DIN 2605-1991,DIN 2617-1991,DIN 2615-1992,DIN 2615-1992

7.Corlor:black color or others,according to your requirement

8.The larger order quantity,the lower price

Short radius elbow refers to 1 times the diameter of the bend radius of curvature of the pipe;Also known as 1 d.The bend radius of curvature is equal to 1 times the diameter of the pipe.Is usually 90 ° Angle.Look from the intuitive, short radius elbows are much shorter than the Long Radius Elbow, elbow bend radius is very urgent.Long radius elbow is one of the most commonly used, generally the default also long radius, high pressure or high velocity it USES long radius, if it is solid conveying pipelines is demanding the larger the radius of the elbow.Short radius is generally used in low pressure fluid or bend with limited places.If there are no restrictions or not specified in the contract, first choose long radius elbow.

Short Radius Elbow

90 Degree Short Radius Elbow, Stainless 90 Degree Elbow, 90 Degree Short Radius Pipe Elbow
